Device Overview

Let’s Get You Started with the new OTconnect Beat™
  • Getting Started
    • Items included
    • Setting up your device
    • Powering your device ON/OFF
  • Device Placement
  • Device Charging
  • Device Care
  • Device Features
    • LED Light Ring feature
    • Connecting to the Orangetheory Mobile App
    • Out-of-Studio Workouts
  • Technical Specifications

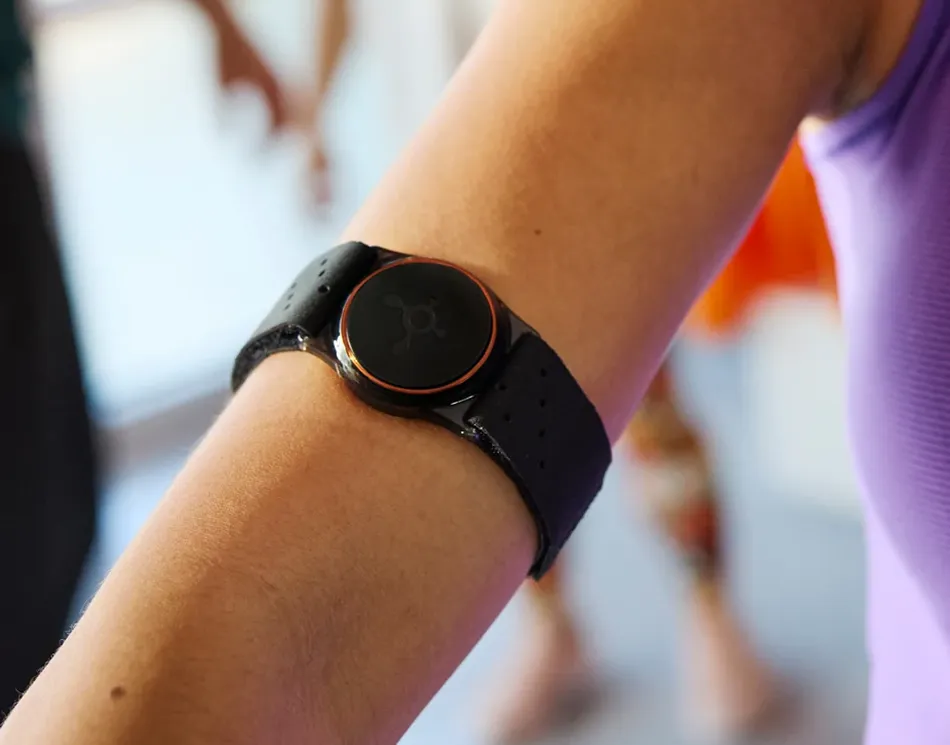

Woman wearing OTconnect Beat device in her arms.

Getting Started

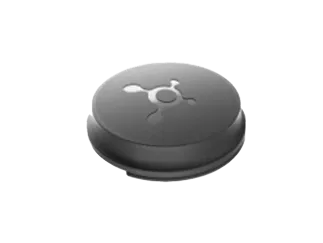

OTconnect Beat main device pod
Pod

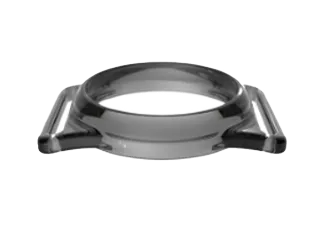

OTconnect Beat device carrier
Carrier

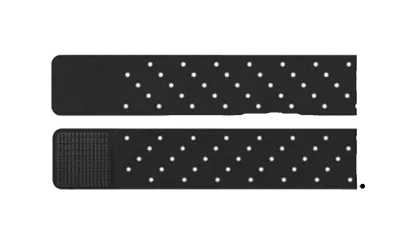

OTconnect Beat device removable strap
Strap
OTconnect Beat device charging wire
Charger
Items included:
  • Device Pod and Carrier.
  • Device Strap Medium. To ensure the perfect fit, you may exchange the medium strap for a small or large strap, free of charge, at time of purchase or in-studio before your first class.
  • Charging Cord.

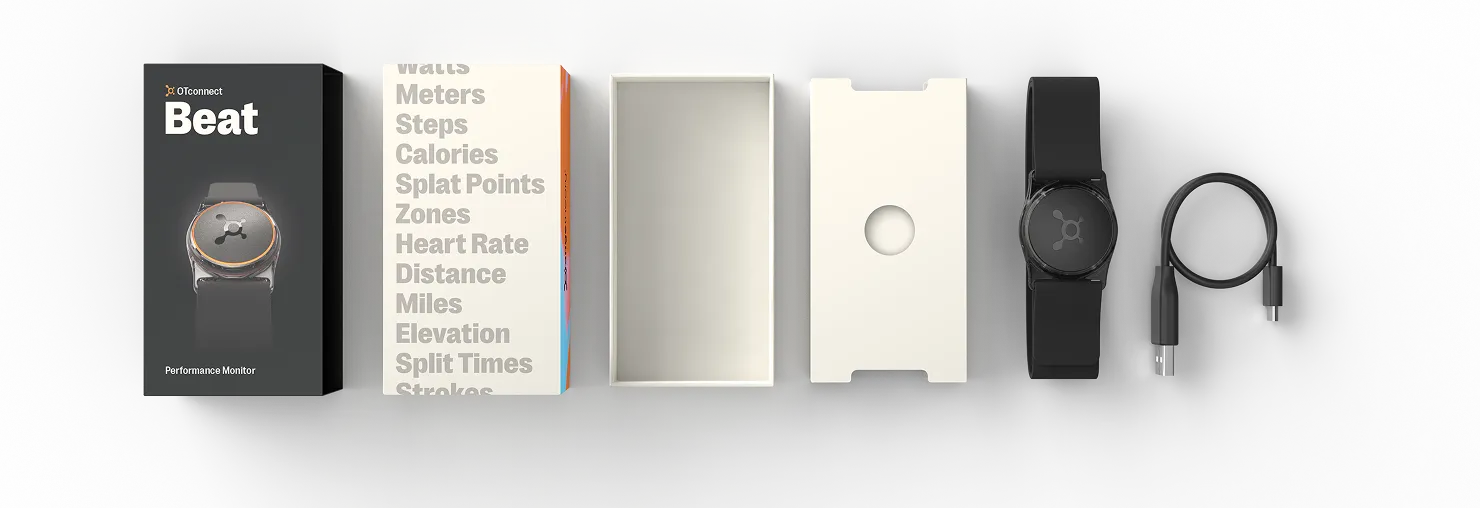

OTconnect Beat device items found inside the box
Setting up your device:
  • Remove your device from the box insert.
  • Connect the charging cord to the USB-C port on the underside of the device to wake the unit from manufacturing sleep mode.
  • Charge for use. See Device Charging below for more detailed information.
  • Once your device is fully charged, remove the cord and power ON.

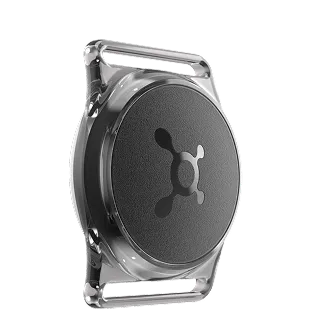

OTconnect Beat main pod with the armband carrier
Powering your device ON/OFF:
  • Power On: Single press on the dome button over the Splat icon on the top of the unit.
  • Power Off: Hold the dome button for 2 seconds.
  • Auto Power Down: If no movement or heart rate detection for 5 minutes, it will automatically power down to save battery life.

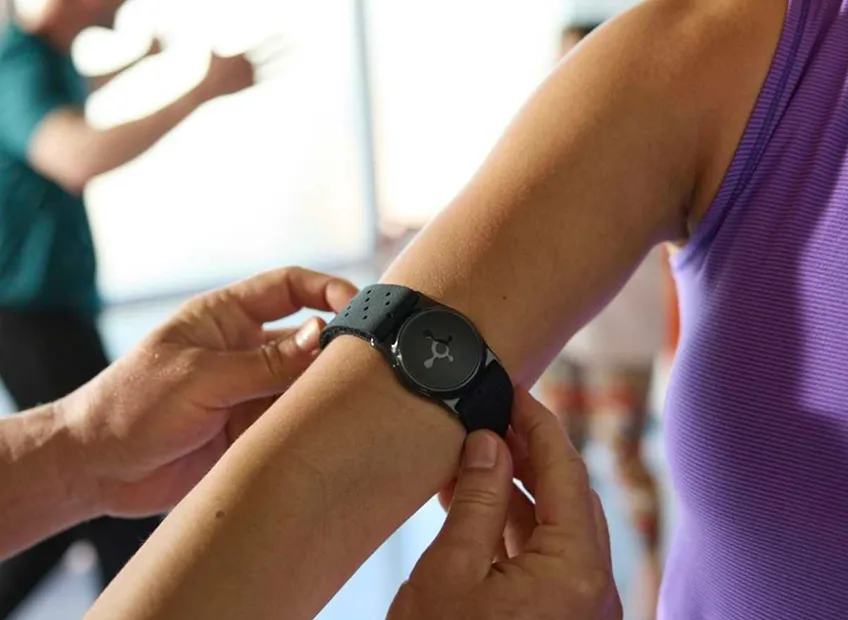

Demo on how to properly place the OTconnect Beat device.

Device Placement

  • Wear snugly around the bicep with the pod facing away from your body.
  • Ensure the optical sensor on the underside is in direct contact with the skin.
  • Avoid placing over tattoos to maintain heart rate accuracy.

Device Charging

  • Lift the rubber cover on the underside of the device.
  • Plug the USB-C connector into the device's USB-C port.
  • Connect the USB end to a computer port or charging block (not provided).
  • Charging indicators:
    • While charging: Light ring slowly pulses white.
    • Fully charged: Light ring illuminates white for 2 seconds, then turns off.
  • Charging time may vary depending on power source.
OTconnect Beat device charging port

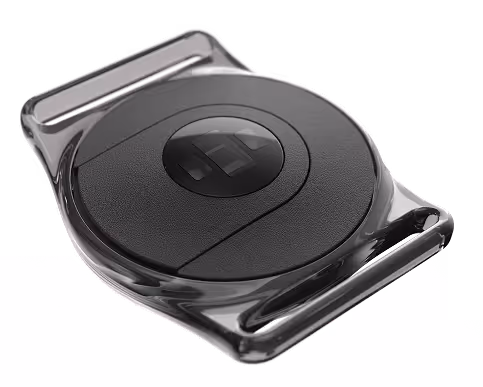

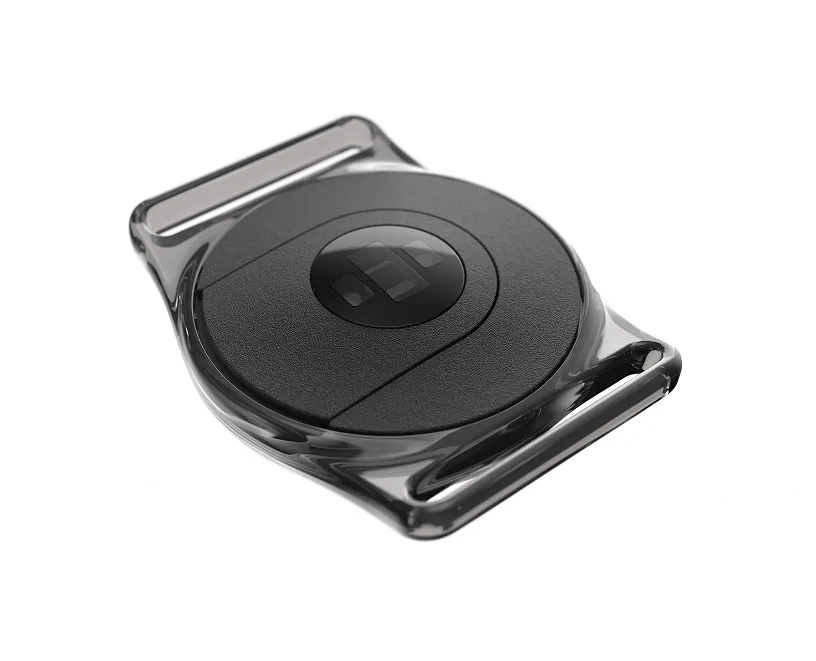

OTconnect Beat back part of the pod

Device Care

  • Clean the optical sensor after each use with a soft cloth.
  • Clean with mild soap and cool water.
  • Do not machine wash the pod.
  • Strap may be machine washed, but do not machine dry.
  • Avoid abrasive cleaners to prevent damage.

Device Features

LED Light Ring / Zone Indication

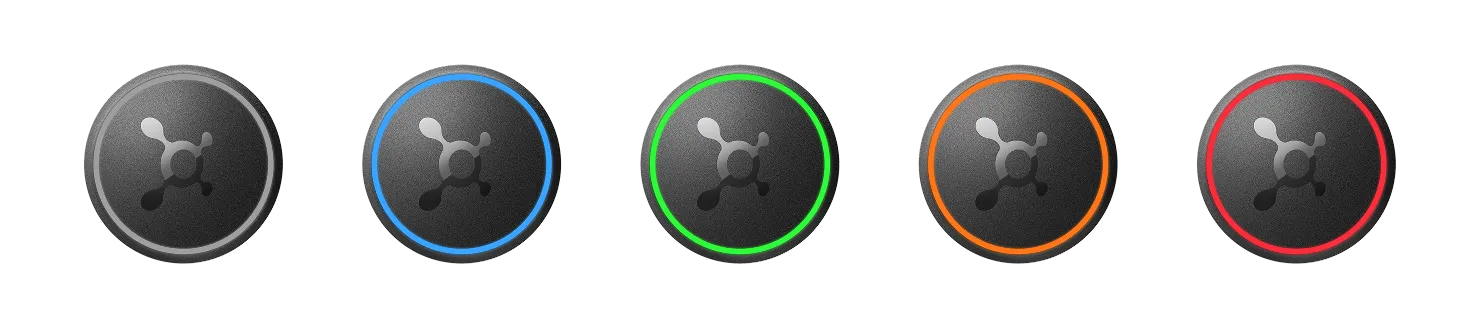

Different types of OTconnect Beat zone indicator light rings
  • If supported by your studio: Light ring pulses in the color of your heart rate zone.
  • If not supported: Light ring pulses white by default. You can enable Zone Indication via the Orangetheory mobile app.
  • Once enabled, personalized zone data is stored on the device.

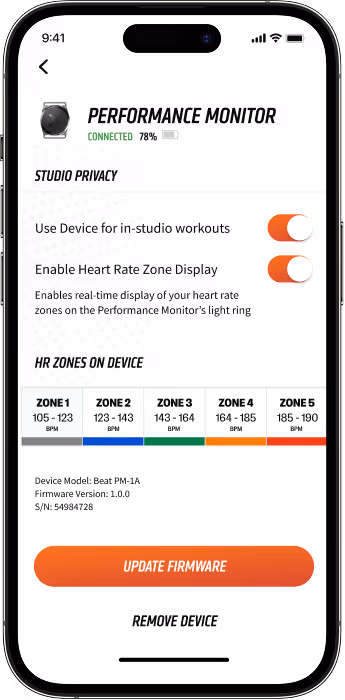

Enable/Disable Zone Indication in the Orangetheory Mobile App

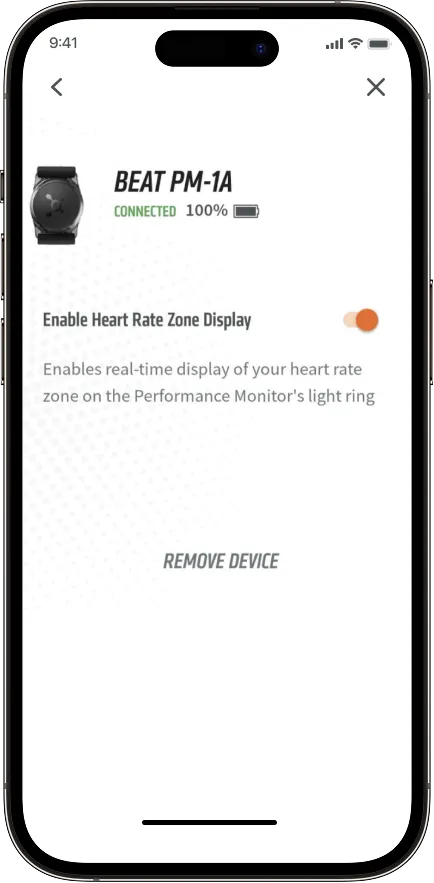

Enable OTconnect Beat zone indication through Orangetheory Fitness mobile app.
  • Connect to the app (see Connecting to the Orangetheory Mobile App).
  • Go to Settings > Devices and select your device.
  • Toggle Zone Indication ON or OFF:
    • ON: Light ring shows zone color; white when resting in Gray Zone.
    • OFF: Light ring continuously pulses white.

Charging and device status

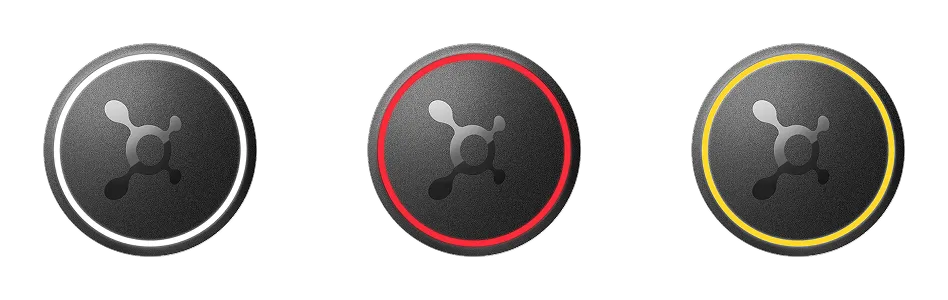

OTconnect Beat different charging light indicators
  • Charging: Pulses white while charging; illuminates white for 2 seconds when full.
  • Low Battery: Blinks red 3 times at <15% battery; repeats before auto power-off.
  • Firmware Updates: Flashes yellow during update; flashes green when complete.

Connecting to the Orangetheory Mobile App

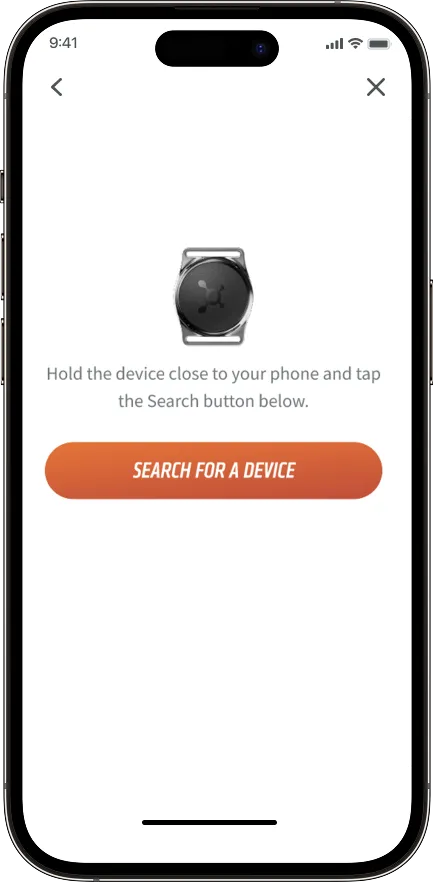

Connecting OTconnect beat device to the Orangetheory mobile app.
  • Ensure the app is updated to the latest version.
  • Fully charge and power ON your device.
  • Enable Bluetooth on your phone.
  • Open the Orangetheory mobile app.
  • Navigate to Settings > Add Device.
  • Select your device when it appears to complete the connection.
Functions Enabled via App:
  • Out-of-Studio Workouts
  • Zone Indication

Out-of-Studio Workouts

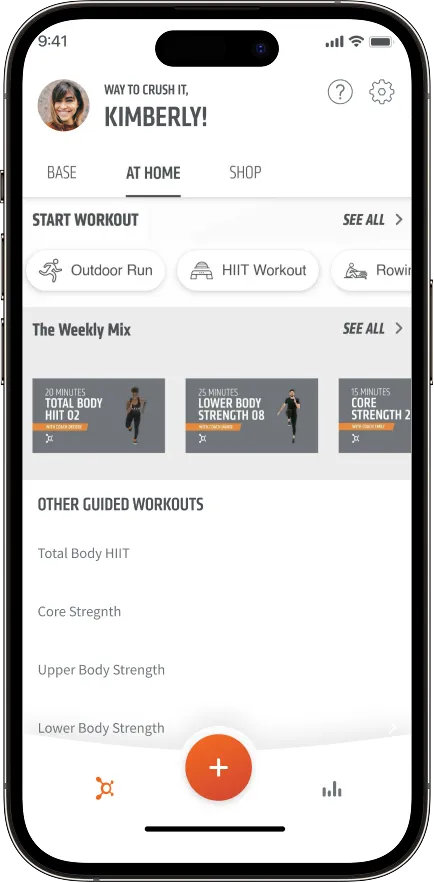

Out-of-studio workouts page in the Orangetheory mobile app.
  • From the Base Home Page, select At Home from the top navigation.
  • Tap See All > in the Start Workout panel.
  • Select a workout type.
  • Ensure your device is connected to the app before starting.
    • If not found, either reconnect (recommended) or continue without the device.
  • After your workout:
    • Tap Pause
    • Tap Finish
    • Save or discard the workout.

Technical Specifications

1. Functions
Heart rate detection, step count, BLE transmission of workout data
2. Heart Rate Range
30-220 BPM in 1 BPM resolution
3. Transmission
Bluetooth Low Energy (BLE)
4. Power Supply
DC 5.0V/100mA
5. BLE Transmission Distance
10.67 meters (35 feet)
6. Battery Life
10 hours
7. Water Resistance Level
IPX8
8. Storage Temperature
-20 to +60⁰C
9. Operating Temperature
0 to +40⁰C
